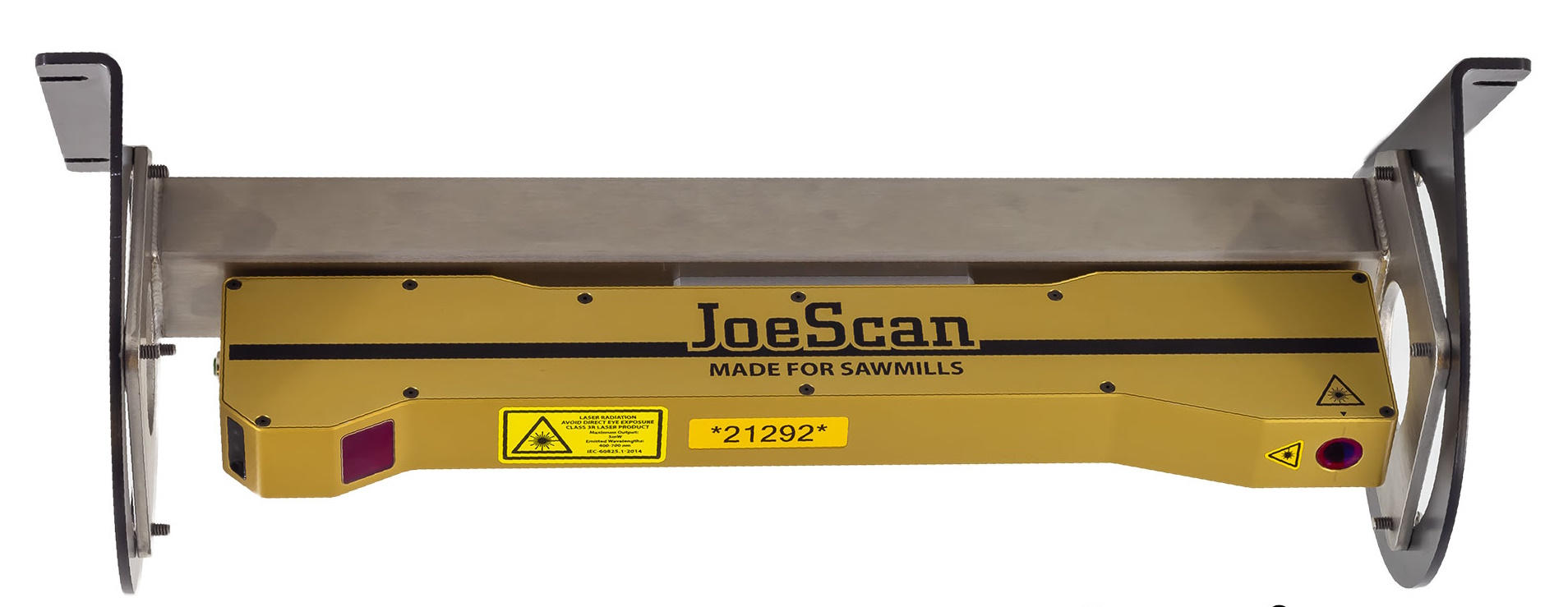

JS-20/25 Retrofit Bracket

For installations where JS-50 MX units are used to replace JS-20 MX or JS-25 MX scanners, a retrofit option is available:

A Dimensional Drawing can be found here.

When using the retrofit bracket, the position of the laser plane is identical to that of the JS-20/25 MX, so that no mechanical changes are necessary.

The Field of View of the JS-50 MX and the JS-20/25 MX are identical.

Ring Mounts

Please note that the ring mounts are not included - for most old installations these are already in place. If needed, they can be purchased separately.

Compatibility

The software interface of the JS-20/25 MX and the JS-50 MX, as well as the cabling are not compatible - you will have to run new cables and adapt your software accordingly.
