JS-50 Mounting Brackets¶
The X6B and Z8 models do not utilize the QuikLock system, instead you can purchase mounting bracket kits, or fabricate your own.
JS-50 X6B and JS-50 Z8 mounting¶

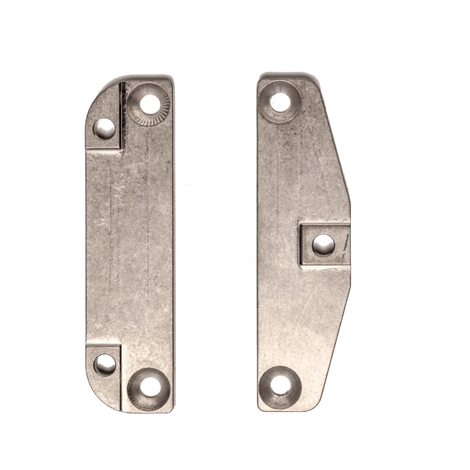

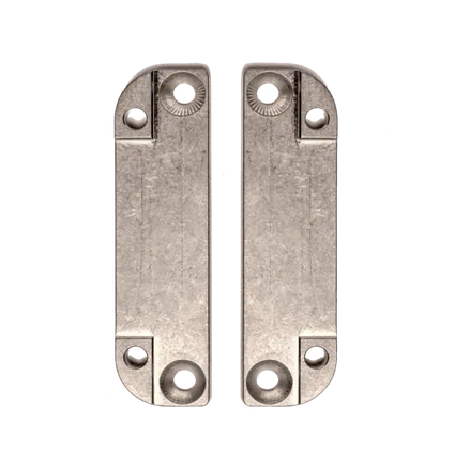

| 3-point brackets | 4-point brackets |
|---|---|
 |
 |
| Drawing | Drawing |
Available are 3-Point and 4-Point brackets in kits, including fasteners. Please see the Accessories page for part numbers, dimensional drawings and kit contents.
The web pages for the X6B and Z8 link to the data sheet, STEP files and dimensional drawings.
